Established in 1995, Digital Matrix Corporation provides world-class precision electroforming & plating equipment, systems, specialty electronic components, and development/ consulting services to industry, governments, and universities in 24 countries.
The art and science of applying transitional metals to objects through chemical deposition dates back thousands of years to the metallurgists, artisans and alchemists of ancient civilizations such as those in Egypt and India. Today, state-of-the-art electroforming & plating methods are used to “grow” precisely formed metal components essential to manufacturing optical discs, microchips, holographics, nanotechnology elements, vinyl recordings, fluidics and more.
Please contact us with your inquiry.
Plating Tanks & Systems
LEFT COLUMN
RIGHT COLUMN aslfkjsldfj0wepjf[pwejfp-owejo-few
MEMS | Microfluidics | Nano Tech
Digital Matrix has long been involved with plating for MEMS, microfluidics and Nano technology, both for industrial and research and development (R&D) applications. Our equipment can be found not only in well-known manufacturing companies, but many of the leading research facilities and universities worldwide.
Example specifications sheet for single-cell rotational electroforming system. (SA-1m)
Specifications sheet for single-cell fixed shim electroforming system. (SE-101)
Specifications sheet for single-cell table-top precious metals plating system. (PMT-16)
Contact us with your inquiry.

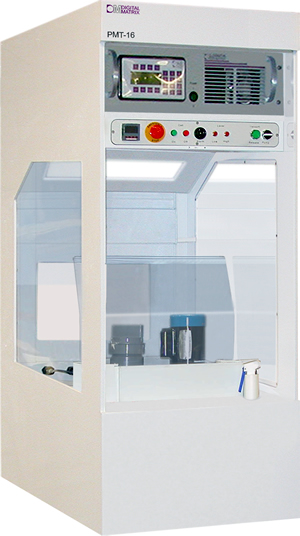

Shown below is PMT-16 Benchtop Small Shim Electroforming system. This a great choice for small-scale production, R&D, and prototyping of precision-formed deposition features on substrates measuring up to about 200mm. Ideal for metal deposits from Nickel, Silver, Gold, Tungsten, Palladium and associated alloys.
PMT-16 Specifications sheet.
Contact us with your requirements.
Holography & Flat Panel Display Applications
Digital Matrix is one of the leading manufacturers of electroplating equipment for the flat panel display and array structures industries. The range of models can support shims from 200 mm to 2.5 Meters with excellent control of thickness uniformity.
Digital Matrix offers a range of tank models that can be customized sizes to meet your requirements.
Example specifications sheet for 2-cell large shim electroforming system. (SA-1002)
Contact us with your inquiry.
Shown below is SE/101 Single Cell Freestanding Plating System – Similar process features as PMT-16 bench top unit. Both feature ergonomic design, easy process maintenance, and precise control of shim thickness and variation. High-flow filtration yields defects and speedier production times.
Contact us with your requirements.
Lens Manufacturing
Precision lens-making is used across a broad range of industries – medical, automotive, gaming, and many more. Digital Matrix builds custom plating for the mold inserts used to replicate precise lens components.
Contact us with your inquiry.
Contact us with your requirements.
Media Disc Manufacturing
Vinyl RecordingsThe resurgence in demand for vinyl recordings in the music industry has led to a need for increased manufacturing capacity. Creating high-quality records for end-user sale calls for the production of a nickel-plated master disk used to press-out the finished product. Digital Matrix has available state-of-the-art plating systems designed to efficiently produce these “stampers.”
FAST VINYL LACQUER PLATING SYSTEM – SAMPLE SPECIFICATION SHEETS (pdf):
2-4-6 Cell Vinyl Lacquer High Speed Plating System
Lacquer Silvering Station
Pre-Plating Station
Contact us with your requirements.
Optical Disc MediaSince 1995, Digital Matrix has been manufacturing electroforming systems (plating that separates from the mandrel) for the CD and DVD manufacturing industry world-wide. Digital Matrix has also been at the forefront in the development of stamper manufacturing for the new generation Blu-Ray and HD DVD formats.
Contact us with your requirements.
Although the complete processes are quite different, both optical media (CDs, DVDs) and vinyl record stampers use rotational plating setups applying nickel deposit onto the circular substrate. Shown below is our VLP/1002 fast-plating system in 2-cell x 2 configuration, in effect 4 production cells using a common master panel and sump.
Contact us with your requirements.
Prototyping & Production Services
Additive manufacturing through electroforming can bring many economic and quality-control benefits to your manufacturing process compared to other production methods such as 3-D printing, chemical etching, laser cutting or stamping. Electroforming provides a high-precision, atom-by-atom deposition to create critical components for state-of-the art equipment used in a wide array of devices for medical, optical, gaming, and many other industry applications.
We recognize that the introduction of in-house additive manufacturing equipment can represent a significant resource commitment, which is why we offer LIGA* prototyping services to help develop proof-of-concept samples, along with strategic planning to maximize your return on investment if you decide to go forward with equipment purchase. Depending on your requirements, we can also provide actual production runs on an outsource basis. Please contact us to start the conversation!
* LIGA is a German acronym used to refer to the processes of lithography, electroforming, and molding use to create microstructures.
Specialty Electronics | Software | Consulting
Digital Matrix offers built-to-order application-specific power supplies (rectifiers), as well as high-performance controllers for precise voltage regulation, durability in challenging plating environments, and reliability for all levels of production.
User-friendly touch-panels or remote PC apps provide easy process management through both firmware and customized software for specific application.
The Digital Matrix engineering team has been put to work on diverse projects such environmental control systems for skyscrapers, aviation prototyping, electronic toll collection systems, and much more. Activities can include development of proof-of-concept prototypes, advanced technical research and analysis, and integration of disparate process applications. Contact us with your inquiry.
Chemicals & Accessories
In addition to providing initial chemical supplies on turn-key system installation, Digital Matrix can provide replenishment or stand-alone orders on an array of chemstries and additives for optimizing electroforming applications.
Formulations are US-made and subject to the highest quality controls in the industry. Digital Matrix is an official distributor for the DisChem family of products for electroforming and lithography. Analytical services available. Contact us with your inquiry.
Shown below are examples of our “remote” controller DMC4-PLT-RM1, the DMC4-PLT-RM1 Series Plating Rectifier/Process Controller, and DMC4-RPP Series Reverse Pulse Plating Rectifier/Process Controller. Contact us with your requirements.
Customers
We count these organizations and many others among our clients for both equipment and consulting services:
